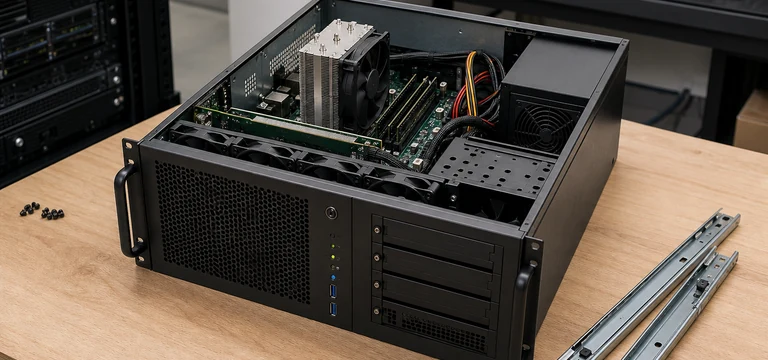

A rack mount PC case turns ordinary motherboard, storage, network, and accelerator parts into a rackmount server or workstation that can live in a standard 19-inch rack. This server case may look like a desktop computer case laid on its side, but the rack changes its cooling path, weight support, cable access, and service space. The wrong chassis depth or rail kit can make an otherwise compatible build impossible to mount.
There is no universal rackmount case for every set of PC components. A storage server may prioritize hard drive bays and a hot-swap backplane. A GPU workstation needs full-height expansion slots, card support, power connectors, and an unobstructed cooling path. A shallow wall rack needs a short-depth rack mount case, often at the cost of drive capacity or large graphics cards. Start with the workload and rack measurements, then choose the chassis.
Rackmount chassis size: 1U, 2U, 3U, or 4U
One rack unit is 1.75 inches, or 44.45 millimeters, of vertical rack space. Chassis height is slightly less so equipment can slide into the opening. More rack units give designers room for larger cooling fans, taller expansion cards, wider CPU coolers, and conventional power supplies. The U number says nothing about chassis depth, internal height over the motherboard, or usable component clearance.
1U
A 1U rackmount chassis is built around compact heatsinks, high-speed cooling fans, PCIe risers, low-profile hardware, and exact airflow ducts. It suits dense systems designed as a complete platform. It is a poor first DIY rack PC because small changes in CPU socket, memory height, or fan pressure can break the cooling plan.
2U
A 2U rack mount chassis can support low-profile cards and selected full-height cards through a riser. Cooling still depends on small, fast fans and a clear front-to-rear path. This server case fits a compact rackmount server when the motherboard, power supply, cooler, riser, drive cage, front panel, and rails have been checked together.
3U
A 3U rack case creates more cooler and card space without taking the full 4U. Product choice and rail accessories are less common than 2U or 4U in the DIY market. Review the exact internal height because a full-height card bracket does not guarantee room above the card.
4U
A 4U rackmount chassis is usually the most forgiving choice for ATX-style builds. Many 4U server chassis accept full-height cards, ATX or SSI boards, 120mm fans, and PS/2 power supplies. That flexibility does not guarantee fit for a tall tower cooler, wide GPU, cable connector, or oversized motherboard.
Current 4U rack mount case comparison
| Case | Published fit | Best use |
|---|---|---|
| Sliger CX4170a | 17-inch depth; boards to 13 inches; long GPUs | Short-depth compute or workstation |
| Rosewill RSV-L4500U | 25-inch depth; up to E-ATX; 15 internal 3.5-inch bays | Low-cost bulk storage build |
| Chenbro RM41300 | 4U; E-ATX; five 3.5-inch and three 5.25-inch bays | Conventional industrial server |
Specifications were checked July 16, 2026. Case revisions, included fans, rails, and stocked options can change.
Research method and missing evidence
The comparison uses current manufacturer dimensions, board support, drive positions, cooling mounts, expansion space, power-supply fit, and rail data. None of these cases was assembled, weighed, noise-tested, or thermally tested for this article. Published compatibility cannot predict cable stiffness, manufacturing tolerance, fan tone, finish quality, or airflow with a reader's parts.
Product pages also use terms such as E-ATX loosely. Record the motherboard's width and depth in millimeters or inches and compare those measurements with the chassis drawing, standoffs, cable openings, fan wall, and drive cage.
Rack mount PC case evaluation criteria include rack units, exterior and usable depth, rail range, motherboard standards, power-supply form factors, redundant power supply options, hard drive and optical drive bays, SATA/SAS/NVMe backplanes, fan layout, radiator support, GPU clearance, expansion slots, cable paths, front-panel access, removable panels, and manufacturer support. Cases with unclear drawings or incomplete accessory documentation require extra caution because a missing rail or drive-carrier part can stop a build.
Three cases for different builds
Short-depth rack workstation
Sliger CX4170a
Sliger lists the CX4170a as a 17-inch-deep 4U rackmount case supporting EATX, SSI-EEB, and XL-ATX motherboards up to 13 inches deep. It supports GPUs up to 375mm, an ATX power supply, CPU air coolers up to 153mm, and several 120mm fan positions. Storage brackets and slide rails are selectable options.
It suits a compute node or rack workstation where cabinet depth is limited but full-size cards matter. Drive density is modest compared with a storage chassis, and some fan, radiator, drive-cage, and rail combinations conflict. Build from the configuration notes rather than the headline limits.
Strengths
- Short 17-inch body
- Large board and GPU support
- 120mm fan and ATX PSU choices
Limits
- Rails and fans can cost extra
- Drive capacity depends on brackets
- Some radiator and cage choices conflict
High internal drive count
Rosewill RSV-L4500U-SK
Rosewill publishes the current RSV-L4500U-SK as a 4U rack mount server case with 15 internal 3.5-inch hard drive bays, seven expansion slots, and support for ATX, micro-ATX, mini-ITX, and boards sold as E-ATX. Its page lists up to 152mm CPU-cooler height without the GPU holder, GPU length up to 320mm with the middle fan installed, and an ATX power-supply position.
This is a direct-attached-drive layout rather than a front hot-swap backplane. It suits a home server or backup target that values drive count over quick replacement. Fifteen drives add cabling, startup power, vibration, and heat. Check HBA ports, breakout cables, airflow, and rail support as one build.
Strengths
- Many internal 3.5-inch bays
- Conventional board and PSU support
- Several large fan positions
Limits
- 25-inch chassis needs a deep rack
- Internal bays are not front hot-swap
- Dense cabling can restrict airflow
Traditional industrial layout
Chenbro RM41300
Chenbro's RM41300 is a 4U E-ATX server chassis with five internal 3.5-inch positions, three 5.25-inch optical drive bays, a slim optical position, a PS/2 power-supply option, a front 120mm cooling fan position, and optional rear 80mm fans. Chenbro lists model-specific rack rails with defined post-spacing and load ranges.
The open 5.25-inch bays can accept optical, removable-drive, or hot-swap modules when their fit and controller path are compatible. It suits an industrial or general server that needs legacy bay flexibility more than maximum disk density.
Strengths
- Flexible front device bays
- Published rail choices
- Conventional 4U cooling layout
Limits
- Exact bundle varies by part number
- Rear fans may be optional
- No integrated storage backplane in base layout
Rack mount PC case compatibility checklist
Motherboard dimensions and standoffs
ATX is nominally 12 by 9.6 inches, while micro ATX and mini ITX need less board area. Server motherboards may use SSI-CEB, SSI-EEB, proprietary, or loosely named E-ATX layouts. A wider board can cover cable holes or hit a fan wall. Confirm standoff positions, rear I/O opening, main power connectors, CPU socket location, memory clearance, and front-panel header.
CPU cooling
Compare cooler height with the chassis limit after accounting for the motherboard and socket. Tower-cooler heat pipes and fan clips can extend beyond the listed height. Server boards may place the socket for front-to-rear passive cooling through a duct. A desktop cooler turned sideways can fight the rack airflow.
High-TDP CPUs need more than physical clearance. Use the chassis maker's fan plan and the cooler maker's supported processor range. Dense 1U and 2U builds often need a matched heatsink and high-static-pressure fan wall.
If the parts list uses liquid cooling, verify radiator support from the official mounting diagram. A chassis may advertise 120mm fan positions without leaving the extra depth needed for a radiator, fans, fittings, and hose bends. Installed drive cages or long power supplies can remove a nominal radiator position.
GPU clearance, expansion slots, and riser options
Check bracket height, card length, card height above the slot, thickness in slots, rear power-connector clearance, and support for transport. A published maximum GPU length may shrink when the middle fan or drive cage is installed. Two large cards can block board headers and change airflow.
In 1U and 2U cases, confirm the exact riser part, slot wiring, PCIe lane width, and motherboard slot position. A riser made for one board layout may not align with another.
ATX, SFX, Flex ATX, and redundant power supplies
PS/2 or ATX supplies are common in 4U DIY cases. Short chassis may limit supply length or cable bend. Smaller Flex ATX and server power supplies fit thinner cases but often use small, louder fans. Common redundant power supplies use paired removable modules and a power-distribution board; they are not interchangeable with an ATX supply just because the watt rating matches.
Drive bays, hot-swap backplanes, and controllers
An internal bay holds a drive inside the case. A hot-swap carrier exposes it at the front or rear and connects through a backplane. The operating system, controller, backplane, cabling, and drive protocol all have to support the intended replacement behavior.
SATA drives can connect to board ports or an HBA. SAS drives require a SAS-capable path. NVMe bays carry PCIe and often use SlimSAS, MCIO, OCuLink, or vendor cables. A connector's shape does not prove lane mapping or protocol support. Use the chassis and motherboard wiring diagrams.
Direct attach or expander
A direct-attach backplane gives each drive a dedicated controller link. An expander lets many SAS or SATA drives share controller ports, subject to the expander and uplink design. NVMe switch backplanes solve a different PCIe problem. Budget the HBA, cables, breakout direction, airflow, firmware, and spare carrier with the chassis.
Drive cooling and vibration
A wall of hard drives blocks airflow and adds heat. Keep cables out of the intake path, use the fan positions the case was designed around, and watch individual drive temperatures after deployment. Secure every carrier and use approved screws so vibration does not transfer through loose parts.
Cooling architecture, fan layouts, and radiator support
Rack equipment normally pulls cool air from the front and exhausts it at the rear. Use fans with enough static pressure for filters, drive cages, heatsinks, and cable density. More fan openings do not help when air takes an easy path around the hot components.
Small fans usually need higher speed to move air through resistance and can sound sharp in an office. A 4U case with 120mm fans can be easier to quiet, but low noise still depends on component heat, fan curve, grille restriction, and room temperature. Do not slow fans until storage, VRM, memory, add-in-card, and CPU temperatures have been observed under sustained load.
Rack rails, mounting options, and service access
Four-post sliding rails support the chassis and let staff reach internal parts. Match the rail kit to the exact case revision and the rack's front-to-rear post spacing. Check square-hole, round-hole, or threaded mounting requirements. Universal fixed rails can support a case but may not permit full slide-out service.
Rack depth is not the same as usable equipment depth. Subtract front door, rear door, cable manager, PDU, plug, and bend space. A 25-inch chassis may need substantially more than 25 inches between doors. Leave enough rear aisle room to pull power and data connections safely.
Sliding rails provide the best internal service access when the rack and chassis support them. Fixed rails or a rated shelf can hold a rackmount PC, but the system may need to be removed before its top panel opens. Check the loaded chassis weight, rail rating, rear support, screw or tool-less attachment, and whether the cable arm preserves network and power connections during service.
Safe installation
- Build and test the system on a bench before rack installation.
- Install rails to the maker's stated post range and hole type.
- Use two people or a lift for a loaded chassis.
- Mount heavy cases low and keep the rack stable while sliding equipment.
- Label drives and cables before closing the rack.
- Check all fan, drive, memory, and controller temperatures under sustained work.
How to choose a rack mount PC case by workload
Good fit
A rack mount PC case suits a home lab, studio, branch server, local storage server, or rack workstation when the owner wants shared power, cabling, physical organization, and service access. Choose a storage-centric chassis for many drive bays, a GPU-centric chassis for compute, a redundant-PSU chassis for higher availability, or a shallow-depth chassis for a wall cabinet. It also works when commodity PC hardware matters more than the vendor support of an integrated server.
Who should avoid a DIY chassis
Choose a validated server or workstation platform when downtime is costly, firmware compatibility must be owned by one vendor, spare parts need service-level coverage, or the cooling design cannot be tested. A custom build moves integration and support responsibility to the builder.
Rack mount PC case buying checklist
- Rack unit height, exterior chassis dimensions, and usable internal depth
- 19-inch server rack post spacing, hole type, rail part number, and weight rating
- ATX, micro ATX, mini ITX, EATX, or SSI motherboard dimensions and standoffs
- ATX, SFX, Flex ATX, or redundant power supply dimensions and cable reach
- CPU cooler height, cooling fan positions, front-to-back airflow, and radiator clearance
- GPU length, card height, slot thickness, riser wiring, and power-connector clearance
- 2.5-inch, 3.5-inch, and 5.25-inch drive bays, carriers, and hot-swap backplane protocol
- Front panel controls, filters, removable covers, cable access, and replacement parts
Full build cost
Count the chassis, rails, shipping, fans, filters, power supply, riser, HBA, backplane, cables, drive carriers, GPU supports, rack shelf if needed, spare parts, and assembly time. A low chassis price can disappear after buying a proprietary rail kit and drive hardware.
Also price the rack depth and room effect. A deep case may force a cabinet change. A loud, hot build may need a different room, more cooling, or replacement fans that still meet the pressure requirement.
Questions readers ask
Can a normal PC go in a rack?
Yes, on a rated shelf, or its parts can move into a compatible rack case. A shelf uses rack space and must support the computer's weight and airflow.
Is 4U enough for a standard graphics card?
Often, but not always. Check card height above the slot, length, thickness, power connector, support bracket, and any fan-wall or drive-cage conflict.
Do rack cases include rails?
Some do; many sell them separately. Confirm the exact rail part and post-spacing range before ordering the case.
Does a hot-swap case make every drive hot-swappable?
No. The carrier, backplane, cable, controller, firmware, operating system, and storage layout must all support the intended behavior.
What is the best rack mount PC case size for a first build?
A 4U rack mount case is usually easiest because it can accept a standard ATX motherboard, full-height expansion cards, larger cooling fans, and a conventional PC power supply. Measure the rack and every component before treating 4U as a guarantee.
