A rack mount PDU takes power from a branch circuit, UPS, or upstream distribution panel and presents usable outlets inside a server rack. This rack-level power distribution unit can be a plain metal power strip or an intelligent PDU that measures electrical load, reports power consumption, and controls individual outlets. Those features do not change the first buying question: can the rack PDU safely carry the planned load on the available circuit?
Rack PDUs serve servers, storage, network switches, and other IT equipment; they do not create electricity or provide battery backup. Their job is to distribute power from a known source to multiple devices while keeping plug types, circuit limits, cable routes, and service access understandable. In a data center, those details affect rack capacity and availability. In a home lab or office server rack, they prevent an ordinary-looking outlet strip from becoming the least understood part of the power design.
Four rack PDU types for server racks
Product names vary, so compare functions rather than labels. Eaton's Rack PDU G4 documentation separates its models into basic, in-line metered, metered input, metered outlet, switched, and managed types. In that family, metered input reports input and branch information, metered outlet adds individual outlet readings, switched adds outlet control, and managed combines outlet monitoring with control.
Basic PDU: simple rack power distribution
A basic PDU is the simplest rack power strip: it distributes power without a network interface, energy meter, or remote outlet control. It is a good fit for a low-density server rack when an upstream UPS or branch meter already provides load visibility and local staff can reach the equipment. Its main strengths are low cost and fewer management dependencies; its main limitation is the absence of remote monitoring.
Metered PDU: local load visibility
A metered rack PDU adds a display for current draw or other published electrical values. That local load monitoring helps staff check capacity before connecting additional IT equipment. Some product families distinguish a local metered PDU from a monitored PDU that reports data over a network, so confirm whether “metered” means a front display, remote telemetry, or both.
Switched PDU: remote power control
A switched rack PDU can turn selected outlets on, off, or cycle them through a management interface. Outlet grouping and sequencing can support staged startup, remote recovery, or documented load shedding. That control adds cost and attack surface. It should be used only with named administrators, access controls, logs, and a procedure that prevents the wrong server from losing power.
Managed PDU: telemetry and data center integration
A managed or smart PDU can combine unit-level and outlet-level power monitoring, remote switching, alarms, environmental sensors, and network integration where the exact model supports them. It best fits high-density or remotely operated racks that have DCIM, SNMP, API, or syslog requirements. Firmware maintenance, authentication, encryption, and sensor compatibility become part of the operating workload.
A local amp display can be enough for a locked office rack. Network monitoring becomes useful when staff cannot visit the site, when several racks share a capacity plan, or when alarms must enter DCIM or another monitoring system. Remote access needs the same identity, logging, firmware-update, and network-security discipline as a switch or BMC.
Quick comparison
| PDU class | What it adds | Good fit |
|---|---|---|
| Basic | Fixed outlets and protection stated by the maker | Small local rack with upstream metering |
| Metered input | Whole-unit or branch load readings | Capacity checks and overload alarms |
| Metered outlet | Per-outlet energy or load data | Chargeback and device-level records |
| Switched | Remote outlet on, off, and cycle | Remote recovery and staged startup |
| Managed | Per-outlet monitoring and switching | Shared or remotely operated racks |
How these power distribution units were assessed
This article compares current manufacturer manuals, topology definitions, mounting formats, environmental limits, and management features. No PDU was opened, load-tested, thermally measured, or connected to a live branch circuit for this work. A product family is mentioned to show how published capabilities differ, not to claim field reliability.
Electrical fit is site-specific. Outlet count and a long feature list cannot confirm conductor size, overcurrent protection, fault-current rating, grounding, local code, or upstream selectivity. The project electrician and the current product manual control those decisions.
The comparison criteria were voltage and phase, input plug, outlet types and density, published load and breaker limits, rack-mount orientation, operating temperature, meter location, network protocols, outlet control, authentication, sensor options, warranty, support, and firmware policy. Products with unclear electrical specifications or weak current documentation were not treated as interchangeable alternatives. Before purchase, record the exact model code and extract every required value from its datasheet and installation manual.
Choose a rack mount PDU by electrical fit
Voltage, phase, and apparent power
Record the supply voltage and whether the feed is single-phase or three-phase. A simple single-phase estimate uses volts multiplied by amps to give volt-amperes, but real usable power capacity depends on the circuit, load power factor, breaker rules, and site design. Do not select a power distribution unit by multiplying its printed voltage and current and treating the result as a safe continuous load. Measure existing equipment power consumption, include defined growth, and let a qualified electrician establish the permitted continuous load and breaker sizing.
North American small racks often use 120V or 208V feeds. Other sites commonly use 230V. Larger racks may use three-phase power to carry more load and distribute it across phases. The PDU input must match the actual source. A plug adapter does not convert voltage or create circuit capacity.
Input plugs and branch circuits
Common inputs include NEMA 5-15P, 5-20P, L5-20P, L6-30P, IEC C14 or C20, and IEC 60309 variants. Similar-looking part numbers can represent different voltage, current, or phase arrangements. Confirm the complete plug designation, cord length, cord exit direction, and whether the source receptacle is locking.
A PDU with a 30A plug will not connect to an ordinary office receptacle. Changing the plug is not a purchasing shortcut. Cord, internal bus, breakers, listing, and upstream protection are designed as a system. Ask an electrician to provide the correct feed instead of modifying a factory assembly.
Outlet mix
Count equipment plugs, not only devices. IEC C13 outlets commonly serve lower-power IT equipment, while C19 outlets fit higher-current equipment with a compatible cord. North American 5-15R or 5-20R outlets may suit equipment shipped with local cords. Combination outlets can add flexibility, though the PDU's total and branch limits still apply.
Leave spare outlets for service and planned equipment, but do not confuse empty sockets with spare electrical capacity. A rack can run out of safe current while half its outlets remain unused. Locking or retention features help keep IEC cords seated when technicians work behind the rack.
For outlet density, make a device-by-device cord schedule. Include dual-cord servers, redundant storage controllers, network devices, console equipment, and any external power supplies that block an adjacent receptacle. Then compare the socket schedule with the PDU's branch arrangement, because an apparently generous outlet count can still concentrate too much load on one protected group.
Rack mounting: 0U vertical or 1U horizontal
A horizontal PDU mounts across the 19-inch rack and usually consumes 1U or 2U. It works in short racks and open frames where rear vertical channels do not exist. Its outlets are easy to see, but front-to-rear power cords can crowd network cables and block service access.

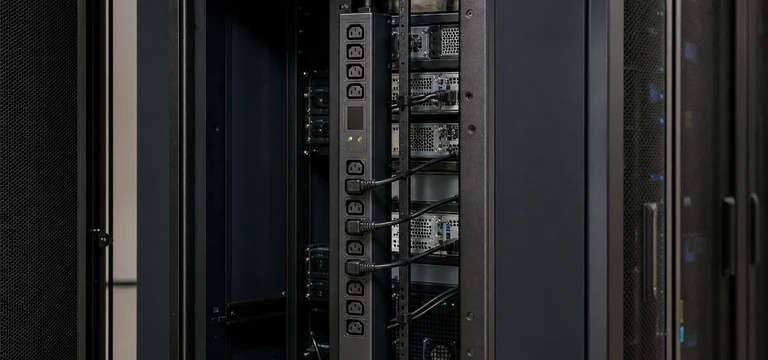

A vertical PDU mounts beside the rear equipment space and is often called 0U because it does not consume horizontal rack units. The cabinet still needs the maker's mounting points, enough side clearance, room for breakers and the network controller, and a cable path that does not obstruct rear exhaust. Verify left- and right-side installation because the input cord and display may face the wrong way after mounting.
Measure the PDU body, plug, bend radius, and cord path against the cabinet drawing. A long vertical strip may fit a 42U cabinet but not a 25U frame. A deep server rail or rear door can collide with a bulky plug even when the PDU itself clears the rack post.
Temperature and airflow
Rear-of-rack air can be much warmer than room air. Compare the PDU's operating-temperature rating with the expected exhaust zone, not the thermostat across the room. Keep vents and displays visible. Do not bundle power cords tightly against hot server exhaust or route them through moving rail hardware.
Three current rack PDU families
Broad topology range
Eaton Rack PDU G4
Eaton documents basic through managed models, single- and three-phase variants, and units with 8 to 54 outlets. The family is useful when one organization wants a common management design across several power levels. The exact model code determines metering, switching, plug, outlet, and sensor capability.
Strengths
- Clear topology matrix
- Local and networked model choices
- Horizontal and vertical formats
Limits
- Large catalog needs careful decoding
- Sensor support varies
- Management adds security work
Flexible international deployment
Vertiv Geist rack PDU and UPDU families
Vertiv publishes basic, monitored, switched, and outlet-level options across several inputs and outlet combinations. Selected universal-input models are designed to let the input power configuration change with a compatible cable. Confirm the exact regional approval and cord rather than assuming one base unit works everywhere.
Strengths
- Wide input and outlet range
- Monitoring and switching tiers
- High-density vertical models
Limits
- Model availability is regional
- Input cables may be separate
- Features differ within the family
Outlet-level operations
Raritan PX4
Raritan positions PX4 for metering, outlet control, sensors, and remote management in data-center racks. That depth suits teams with defined identity, logging, alerting, and change-control practices. A basic office rack rarely benefits from the added administration.
Strengths
- Detailed power visibility
- Remote outlet workflows
- Environmental sensor options
Limits
- Higher purchase and setup cost
- Network hardening required
- Excessive for a small fixed rack
PDU monitoring, remote access, and security
Input metering answers whether the rack is approaching a limit. Branch metering helps balance multi-breaker or three-phase models. Outlet metering can identify a device's energy use, though readings should be interpreted within the maker's stated accuracy. Set warning thresholds with enough time for staff to act before protection trips.
Switched outlets can sequence startup to reduce simultaneous inrush and can cycle an unreachable appliance. Protect that control plane like other infrastructure management. Use a separate management network where the design calls for it, unique credentials, least-privilege roles, encrypted protocols, current firmware, configuration backups, and logs. Disable unused services.
Do not use outlet switching as a normal shutdown method for servers. Configure the operating system, hypervisor, storage, and UPS software to stop workloads cleanly. Reserve a hard power cycle for a documented recovery case.
Before selecting networked monitoring features, list the protocols the operations team actually supports. Some environments need SNMP traps and syslog; others require an API or DCIM integration. Confirm protocol versions, role-based access, encrypted management, certificate handling, local-account recovery, alert delivery, supported sensors, and the vendor's firmware-update process in official documentation. A network PDU left on factory credentials is a control risk, not a management benefit.
Who each PDU suits
Choose basic when
The rack is small, the load is stable, upstream metering is visible, and local staff can reach the equipment. Avoid basic when no one can see growing load or a remote site needs alarms.
Choose metered input when
You need a clear rack-level capacity reading without per-outlet control. This is often the practical middle choice for a lab, branch office, or edge rack.
Choose switched or managed when
Remote recovery, device-level energy records, staged startup, or shared-customer accounting has an owner and procedure. Avoid it when the management interface would remain unpatched or the team cannot control who may switch outlets.
Plan the full cost
Budget includes the PDU, electrician work, branch circuit, receptacle, input cable when detachable, mounting brackets, cord-retention parts, device power cords, environmental probes, network module, licenses, and replacement coverage. A higher-voltage feed may reduce current for the same useful power, but it can require different equipment cords and facility work.
Two PDUs can support dual-cord servers only when each power path is sized for the intended failure case. Plugging both supplies into different strips fed by the same UPS or breaker does not create independent power. Map every receptacle back to its source.
Installation checks
- Have a qualified person confirm source voltage, phase, plug, breaker, grounding, and load.
- Mount the PDU with the maker's hardware and keep breaker handles reachable.
- Support cords so their weight does not pull on equipment inlets.
- Keep power wiring clear of hot exhaust, sharp edges, and sliding rails.
- Label both ends of every power cord and record the upstream source.
- Test monitoring alerts and remote-control permissions before production use.
Before approving a purchase, save the exact rack PDU datasheet, installation manual, firmware or security page, warranty terms, and required mounting-kit part numbers with the rack power design. Confirm the product's current regional listing and compliance markings for the site rather than assuming a family brochure applies to every model. Record the branch source, permitted load, receptacle map, administrator, alert destination, and change log.
Questions readers ask
Is a rack mount PDU the same as a surge protector?
No. Some rack mounted power strips include surge components, breakers, or other protection, while other power distribution units focus on distribution. Read the exact model's listing and specifications. Do not infer surge protection from the rack shape.
Does a PDU replace a UPS?
No. A UPS can provide battery runtime and a defined power-conditioning topology. A PDU distributes the output. Many racks use a UPS feeding one or more PDUs.
How many outlets should a rack PDU have?
Enough for current equipment, service needs, and planned additions, with the correct socket types. Electrical capacity, branch limits, and redundancy design matter more than the raw outlet count.
Can two PDUs share one circuit?
They can only share the capacity available from that circuit. Two strips do not double it. The electrician should account for the combined load and protection design.
Sources
- Eaton Rack PDU G4 installation and setup manual, checked July 16, 2026.
- Vertiv Geist rack PDU brochure, checked July 16, 2026.
- Raritan rack power distribution product documentation, checked July 16, 2026.
