RJ45 Connector Guide: Match the Plug to the Cable

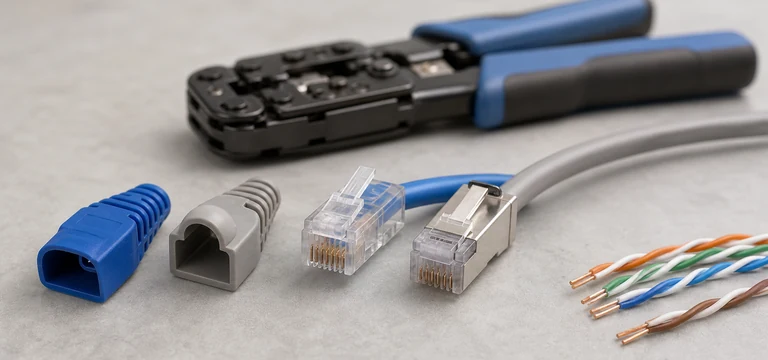

An RJ45 connector is the common name used for the eight-position modular plug on twisted-pair Ethernet patch cables. The physical plug may look familiar, yet a reliable termination depends on details hidden inside the cable: solid or stranded conductors, conductor diameter, insulation thickness, full jacket diameter, spline, shielding, and the category performance the link must carry.

RJ45 connector types

Standard closed-end modular plugs

Conductors stop inside the plug. The installer trims all eight wires to one length before insertion, then checks their position through the clear body. This design works with common ratcheting crimpers when the plug and die agree. The hard part is keeping every wire flat, ordered, and fully seated while the jacket reaches the strain tab.

Pass-through RJ45 connectors

The conductors extend through the nose. The installer can confirm the order and pull the cable jacket closer before crimping. A matching tool crimps the contacts and cuts the protruding wires flush. A poor cut can leave copper at the face, while the wrong crimper can crush the body or fail to trim cleanly.

Shielded plugs

A metal shell gives the cable shield a path to compatible equipment. The shield works as a system: shielded cable, connector, patch panel or device, bonding, and grounding must follow the design and local requirements. Adding a metal plug to unshielded cable does not improve performance.

Field-termination plugs

Field plugs are larger reusable or tool-light connectors often rated for thicker Cat6A cable. They can suit access points, cameras, building controls, or direct-attach links where a normal modular plug is difficult to terminate. Their size may not fit dense switch ports, and the unit price is much higher.

Solid versus stranded cable plugs

Solid cable has one conductor per wire and is common in permanent horizontal runs. Stranded patch cable uses many fine strands for flexibility. Contact blades may be designed to straddle a solid conductor or pierce strands. A plug that claims both should state the supported conductor range. Do not rely on appearance.

Five compatibility checks before buying

1. Cable category. A Cat6 label on the plug should be backed by a stated cable and performance range.
2. Solid or stranded conductor. Match the contact design to the conductor construction.
3. Conductor and insulation diameter. The wire must enter its channel without excessive force or looseness.
4. Jacket diameter and shape. The strain tab should capture the jacket, not press only on bare pairs.
5. Shielding and tool system. Shielded parts need a compatible cable and bond; pass-through plugs need the correct flush-cut die.

Category marketing cannot rescue a poor mechanical fit. Thick cable can stop before the contacts. Thin wire can sit loosely. A cable spline may need the plug maker's stated preparation. Outdoor gel-filled, direct-burial, or high-flex cable may need a purpose-built connector.

T568A and T568B color order

T568A and T568B use the same eight conductors in different pair positions. A normal straight-through cable uses the same scheme at both ends. Existing building standards should control the choice. T568B is common in US patch-cable work, while some sites specify T568A.

Hold the plug in the orientation shown by the connector maker before reading a pin chart. Rotating the plug reverses the visual order. Print the chosen site standard and keep it at the work area rather than relying on memory.

Straight-through and crossover cables

A straight-through cable uses A-to-A or B-to-B. A crossover cable uses T568A at one end and T568B at the other. Modern Ethernet ports often support automatic MDI/MDI-X and do not need a crossover cable, but legacy hardware can differ. Match the documented requirement.

How to terminate a network cable

1. Cut the cable square. Slide on the boot first if the design uses one.
2. Strip a short section of jacket. Use a depth that avoids nicking conductor insulation.
3. Inspect the pairs. Reject damaged or kinked conductors.
4. Choose T568A or T568B. Use the same site standard and verify the far end.
5. Arrange the wires. Untwist only the length needed to enter the plug.
6. Trim and insert. For a closed-end plug, trim square. For pass-through, pull each wire through its channel.
7. Check the face and jacket. All wires should reach the contact area, and the jacket should sit under the strain tab.
8. Crimp once with the matched tool. A full ratchet cycle seats the contacts and strain relief.
9. Inspect and test. Check for exposed copper, split plastic, loose jacket, opens, shorts, reversals, and split pairs.

Keeping the twists close to the plug matters because the pairs use those twists to control interference. A continuity tester can show that pin 1 reaches pin 1; it may not prove that a cable meets Cat6 performance under load. Permanent links and contracted installations may require a calibrated certification tester.

Cable construction changes connector fit

Ethernet cables in the same category can use different American Wire Gauge sizes, insulation materials, splines, shields, and jacket compounds. An outdoor Cat6 cable can be much thicker than a flexible stranded Cat6 patch cord. RJ45 connectors use internal guide channels sized for a range of insulated conductors. If the channels are too small, the wire pairs will not seat. If they are too large, the conductors may move before crimping.

Solid copper conductors are preferred for standards-based permanent cabling. Copper-clad aluminum has different electrical and mechanical behavior and may not be allowed by the cable or connector system. Read the cable printing and data sheet. The connector maker should list solid or stranded support, conductor gauge, insulation diameter, full cable diameter, and shield type.

A load bar or guide insert keeps wire pairs in the correct order in some Cat6A plugs. Do not discard it because the cable appears to fit without it. The small part controls conductor position and separation inside the connector.

Power over Ethernet and high-speed links

Power over Ethernet sends power over the same twisted pair cable used for data. Current can expose a weak termination through heat or intermittent voltage drop. Use cable and RJ45 connectors that the makers rate for the intended PoE application, keep the jacket captured, and avoid damaged contacts. High-power PoE installations need attention to cable bundles and temperature under the applicable design rules.

For 10-gigabit Ethernet over copper, the complete channel matters: cable length, category, patch panels, jacks, plugs, workmanship, and interference. A connector package that says Cat6A is one part of that channel, not a guarantee. Direct field plugs may be used for some equipment links, while structured cabling often terminates solid horizontal cable on a jack or patch panel and uses a tested stranded patch cable to the device.

RJ45 connector buying checklist

• Exact cable category and maker
• Solid, stranded, or dual-rated contact design
• Conductor gauge and insulation diameter
• Cable jacket diameter and spline handling
• Unshielded or shielded twisted pair
• Closed-end, pass-through, or field-termination form
• Compatible crimping tool and replacement blade
• Strain-relief boot fit
• PoE and high-speed application claims
• Pack quantity and unit cost

Buy a small pack and terminate sample cables before committing to a bulk order. Check insertion force, jacket capture, flush cut, latch fit, and cable tester results. When a product family publishes a validated cable and tool combination, staying inside that system reduces guesswork.

When a keystone jack is better

Permanent building cable usually belongs on a punch-down or tool-less keystone jack at the outlet and a patch panel at the rack. That layout keeps stiff solid cable fixed and uses replaceable flexible patch cords at equipment. A male RJ45 connector makes more sense for a direct device link only when the design and cable rules allow it.

RJ45 connector pinout and final inspection

The RJ45 connector pinout is numbered from one through eight, but drawings use different viewing directions. Find the latch and contact orientation stated by the plug maker, then compare the color codes. Reading a mirrored drawing can produce a full reversal even when the eight colors look familiar.

After crimping, look through the clear connector. Every conductor should reach the front contact area in the correct order. The gold-colored contact blades should sit at an even height. The cable jacket should extend inside the body far enough for the strain tab to grip it. Bare wire pairs outside the plug create a weak point and allow more untwist.

For pass-through RJ45 connectors, inspect the cut face under good light. No copper should project beyond the nose, touch another contact path, or fold against the socket. Replace any plug with a cracked latch, distorted body, incomplete crimp, or loose cable jacket. A connector costs less than tracing an intermittent network fault after the cable is installed.

Plan a repeatable installation

Keep one approved connector, network cable, crimping tool, and cable tester combination for a project. Record the model numbers and cable lot. Set a sample termination beside the work area and use the same T568A or T568B correct order at every outlet.

For bulk work, prepare a small station with a clean cutter, jacket stripper, wire-order card, pass-through flush blade, waste cup, labels, and test remotes. Test each cable before it disappears behind equipment. A failed result is cheaper to fix while both ends are still on the bench.

The plug commonly called RJ45 has eight contacts for four twisted wire pairs. It connects switches, routers, computers, phones, cameras, and access points. Shielding can help in electrically noisy spaces, but only when the cable, connector, equipment, and bonding design form one shielded system.

Wrong wire order can leave a link dead or unstable. Use the same wiring standard at both ends for a straight-through cable. A capable tester can find opens, shorts, reversals, and split pairs, but a basic wire map does not prove category performance.

Three current connector systems

Testing and troubleshooting

Open conductor

One pin does not reach the far end. Recheck insertion depth, contact seating, and conductor damage. Replace the plug rather than repeatedly crushing the same body.

Short

Two pins touch. On a pass-through plug, look for wire stubs or a poor face cut. Also inspect the cable for staple, screw, or jacket damage.

Reversal or crossed wires

The order does not match the chosen T568 scheme. Cut off the plug, arrange the full order again, and retest both ends.

Split pair

Continuity can look correct while conductors from different twisted pairs occupy a signal pair. A tester with split-pair detection can catch it. Follow the complete T568A or T568B pair layout rather than matching colors pin by pin.

Intermittent link

Check whether the jacket is captured, the plug fits the socket firmly, and the contact style matches solid or stranded wire. Movement should load the jacket and boot, not the conductors.

What RJ45 connectors cost

Current pass-through store options in this review start around $18 to $20 before the crimper. Pack size drives the unit price, and shielded or field-termination plugs cost more. A matched ratcheting crimper, jacket stripper, flush cutter when separate, and cable tester can cost more than the first bag of connectors.

Bulk price has little value when the plug does not fit the cable. Buying a small verified pack before a large run can prevent waste. Permanent building cabling may also be better terminated on keystone jacks and patch panels rather than male plugs.

Questions readers ask

Is RJ45 the same as Ethernet?

RJ45 is the common plug name in this context. Ethernet is the network technology. Ethernet can also run over fiber, backplanes, and other media.

Can a Cat5e plug go on Cat6 cable?

It may fit some cable, but fit does not prove Cat6 channel performance. Use a plug that lists the cable category, conductor, insulation, and jacket range.

Should a home use T568A or T568B?

Follow the existing site standard. If there is no existing system, either scheme can make a straight-through cable when used at both ends. T568B is common in US patch work.

Are pass-through connectors worse for Ethernet?

A properly matched and trimmed system can perform to its stated rating. Poor cuts, exposed copper, or an incompatible tool can create failures. Product validation and termination quality matter more than the open nose alone.

RJ45 connector fit in 30 seconds

• Match the RJ45 connector to the Ethernet cable category, jacket diameter, conductor size, and solid or stranded construction.
• Use shielded RJ45 connectors only with a shielded twisted-pair system that has a planned bond path.
• Keep each wire pair twisted close to the plug, place all eight wires in the correct T568A or T568B color order, and use the same scheme on both ends for a straight-through cable.
• Use the crimping tool named for the plug design, then run a cable tester before connecting network equipment.

A wire-map pass confirms continuity and pin order. It does not prove that the finished network cable meets its category rating or will carry the intended Ethernet speed.
