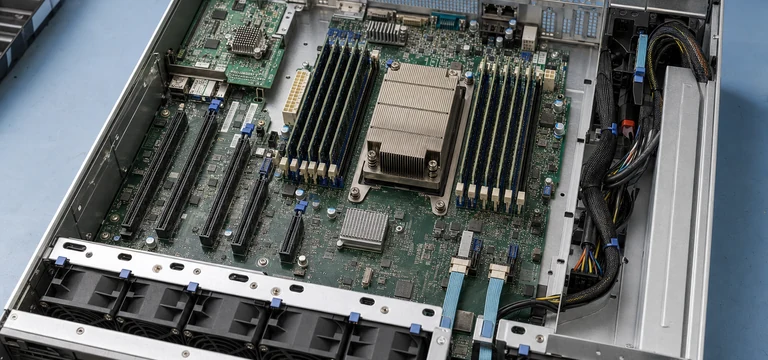

A server motherboard connects the processor, ECC memory, storage, network, management controller, fans, power supply, and chassis. It may run one modest service or carry hundreds of virtual machines. The correct choice is not the board with the most sockets. It is the board whose platform and physical layout match the workload, expansion plan, operating system, and service model.
Choose the server platform first
The CPU decides the socket, memory type, channel count, PCIe generation, lane budget, thermal range, and often the useful life of the board. A lower-cost entry platform may be right for a backup server, domain service, light virtualization host, or small web stack. A high-end EPYC or Xeon platform earns its cost when the workload can use its memory bandwidth, capacity, cores, or device lanes.
Write down five workload facts before shopping:
- Peak and steady CPU demand, including license rules tied to cores or sockets.
- Required memory now and at the planned upgrade point.
- Number and lane width of network cards, HBAs, GPUs, and accelerators.
- Number and protocol of SATA, SAS, and NVMe drives.
- Downtime, remote-service, and firmware-support expectations.
A dual-socket board adds memory channels, capacity, cores, and I/O in some platforms, but it also adds NUMA behavior, power, cooling, licensing, and configuration work. A strong single socket is often easier for a small organization to run.
Intel Xeon and AMD EPYC server motherboard families are platform choices, not interchangeable sockets. Confirm the processor generation, socket mechanics, supported TDP, BIOS microcode, memory channels, and published CPU list for the exact board revision. Intel ARK, AMD platform documents, and the board maker's CPU-support table answer different parts of that check; a matching brand name alone does not.
Three current AMD EPYC board layouts
| Board | Published layout | Strong fit |
|---|---|---|
| Supermicro H14SSL-NT | ATX, 12 DIMMs, five Gen5 slots, dual 10GbE | Balanced single-socket server |
| ASRock Rack GENOAD8UD-2T/X550 | 10.4 × 10.5 in, 8 DIMMs, four x16 slots | Compact storage or GPU build |
| GIGABYTE MZ33-AR1 rev. 3.x | E-ATX, 24 DIMMs, four x16 slots | Maximum DIMM population |
These boards support selected AMD EPYC 9005/9004 processors. Firmware, CPU, memory, and chassis support must be checked for the exact revision.
Research method and limits
This article compares current processor architecture documents, board specifications, manuals, firmware-support pages, and component lists. No motherboard was powered, benchmarked, flashed, or tested with add-in cards for this work. Slot counts and controller names come from manufacturer documents; they do not establish workload performance or cross-vendor support quality.
Server compatibility changes with board revision, BIOS, BMC firmware, processor stepping, DIMM organization, and chassis wiring. The current manual and vendor support lists take priority over a general buying article.
What the board examples show
Balanced ATX server board
Supermicro H14SSL-NT
Supermicro lists the H14SSL-NT as a single-socket ATX board for selected AMD EPYC 9005 and 9004 processors. It has 12 DDR5 DIMM slots, three PCIe 5.0 x16 slots, two PCIe 5.0 x8 slots, dual 10GBase-T, a dedicated management port, eight SATA ports, two M.2 positions, MCIO connectors, and an ASPEED AST2600 BMC.
The 12 by 10.1-inch board is deeper than standard ATX. A case may say ATX yet place a fan wall or cable opening in that extra half inch. CPU support reaches high thermal ranges on selected models, so chassis airflow and heatsink approval are as critical as socket support.
Strengths
- Full 12-channel one-DIMM-per-channel layout
- Several direct expansion slots
- Dual 10GbE and dedicated management
Limits
- Nonstandard ATX depth needs checking
- Some storage needs MCIO cables
- High-power CPUs need server airflow
Compact board with four x16 slots
ASRock Rack GENOAD8UD-2T/X550
ASRock Rack fits a single SP5 socket, eight DDR5 DIMM slots, four PCIe 5.0/CXL x16 slots, several MCIO connectors, two M.2 positions, dual 10GBase-T, and IPMI on a 10.4 by 10.5-inch board. The unusual shape can suit a compact storage server or GPU tower when the case provides the required standoffs and slot positions.
Eight DIMM slots do not populate every memory channel available on a large EPYC platform. That can reduce attainable memory bandwidth compared with a 12-DIMM one-per-channel design. The smaller board trades some memory population for physical and expansion flexibility.
Strengths
- Four direct x16 slots
- Compact footprint
- Dual 10GbE and IPMI
Limits
- Only eight DIMM slots
- Unusual dimensions and standoffs
- MCIO storage requires exact cables
High memory capacity layout
GIGABYTE MZ33-AR1 rev. 3.x
GIGABYTE's MZ33-AR1 revision 3.x is an E-ATX single-socket board for selected EPYC 9005 and 9004 CPUs. It provides 24 DDR5 DIMM slots, four PCIe 5.0 x16 slots, several MCIO connectors, dual 10GbE, a management port, and an AST2600 BMC. Two DIMM slots per memory channel allow a much larger module count than the other examples.
Populating two DIMMs per channel can reduce supported memory speed, depending on processor generation, module rank, and board rules. Its 12 by 13-inch size needs a chassis designed for that board depth, cable exit, CPU position, and airflow.
Strengths
- Twenty-four DIMM sockets
- Four x16 expansion slots
- Many board-level storage links
Limits
- Large E-ATX footprint
- Dense memory raises cost and heat
- Two-DIMM-per-channel speed rules apply
Form factor means dimensions and layout
ATX, micro-ATX, SSI-CEB, SSI-EEB, E-ATX, and proprietary boards differ in width, depth, standoffs, I/O, and expansion positions. E-ATX is not used consistently across every vendor. Compare the printed dimensions and board drawing with the chassis drawing.
Mini-ITX can suit an appliance with one expansion slot and a constrained power envelope, but its limited board area usually reduces DIMM sockets, PCIe expansion, onboard storage connectors, and cooling flexibility. Choose a small form factor only after mapping every required NIC, HBA, NVMe device, and service path.
Check CPU socket position against the chassis fan wall and air duct. Check whether tall DIMMs sit before or after the CPU in the airflow path. Verify the rear I/O shield, front-panel header, USB header, intrusion switch, fan headers, power connectors, and management port. A board can physically enter the case yet remain impossible to cable or cool.
Memory channels, DIMM types, and population
Server platforms can expose two, six, eight, or twelve memory channels per processor. More populated channels raise aggregate bandwidth. Adding capacity to only a few channels can leave performance on the table. Follow the board manual's first-DIMM sequence and balanced population pattern.
DDR generation is only the beginning. Platforms may use ECC UDIMM, RDIMM, 3DS RDIMM, LRDIMM on older generations, or MRDIMM on selected newer systems. These types are not freely interchangeable. Match module type, capacity, rank, speed, voltage, and part validation.
One DIMM per channel can run at a higher supported transfer rate than two DIMMs per channel on many systems. The exact result depends on CPU, board, module rank, and firmware. Decide whether the workload needs maximum capacity or maximum bandwidth before filling every socket.
PCIe lanes, slots, and bifurcation
A physical x16 slot can be wired for x16, x8, or fewer lanes. Several slots may share CPU lanes or change width when another connector is used. Read the block diagram. Count the lane requirement for every GPU, HBA, NIC, NVMe carrier, and accelerator, then map each one to a slot.
Bifurcation divides one slot into smaller links, such as four x4 links for NVMe drives. The CPU, board firmware, slot wiring, carrier, and operating system must support the selected split. A passive four-drive M.2 carrier does not create a PCIe switch.
AMD's EPYC 9005 architecture documentation describes up to 128 PCIe Gen5 lanes in a single-socket design, with platform links that can be assigned to PCIe, CXL, inter-socket links, or selected SATA use. A motherboard exposes only the routes its designer implemented. Processor capability does not guarantee a connector on the rear panel.
Storage connectors
SATA headers are clear but limited to SATA devices. Modern server boards use MCIO or other high-density connectors to carry PCIe lanes, SATA, or both. The same shell can have different pin assignments. Use only cables listed for the board and backplane. Cable direction matters for some SATA and SAS breakout assemblies.
M.2 slots can support different lengths, PCIe generations, lane widths, and sometimes SATA mode. They may share lanes with a slot or MCIO port. Check boot support, hot-swap expectations, heatsink clearance, and replacement access.
Onboard networking
Dual 1GbE may be enough for management and a light file server. Virtualization, backups, and shared storage can justify 10, 25, or faster networking. An onboard controller saves a slot, but it fixes the port type and driver family. SFP28 and copper 10GBase-T have different cabling, reach, heat, and switch requirements.
BMC, IPMI, and remote service
A baseboard management controller can power-cycle the system, show sensors and event logs, open a remote console, mount media, and update firmware while the main operating system is unavailable. Many server boards use an ASPEED controller with a dedicated management port.
Treat the BMC as a privileged computer. Put it on an isolated management network, replace default credentials, use role-based accounts, restrict source addresses, update supported firmware, disable unused services, send logs to a monitored system, and back up its configuration. Do not expose it directly to the public internet.
BIOS and BMC lifecycle
Review the vendor's current firmware history before buying. Look for CPU enablement, security advisories, operating-system certification, update methods, recovery path, and previous-version availability. Some vendors advise against flashing without a reason; others issue security fixes that do require an update. Follow the release notes and change process for the exact revision.
Also verify secure-boot, TPM, signed-firmware, rollback, and emergency-recovery behavior required by the deployment. Download the manual and recovery procedure before the board enters service, record current BIOS and BMC versions, and retain a tested way to reach the management controller if a normal update fails.
Power and cooling compatibility
Server boards may need a 24-pin main connector, two or more 8-pin CPU connectors, auxiliary slot power, or a 12V-only power design. Confirm pinout and current, not just connector shape. Redundant server power supplies often connect through a distribution board rather than directly to an ATX header.
Match the heatsink to the socket, carrier, chassis height, CPU thermal rating, and airflow direction. Memory, voltage regulators, NICs, HBAs, and BMC silicon also need air. Connect fans to headers with adequate current rating and use the sensor zones and fan policy the board expects.
Who should buy a standalone server board
Good fit
A standalone board suits a lab, custom storage server, edge appliance, or small host where the builder owns integration and values specific PCIe, network, or chassis choices. It also works when the parts can be validated and replacement stock is planned.
Who should avoid one
Buy an integrated server when one vendor must own CPU, memory, cooling, chassis, backplane, power, firmware, and onsite service. Custom hardware can cost less up front while demanding more engineering and spare-parts work.
Compatibility worksheet
- Board model and PCB revision
- Supported CPU model, stepping, TDP, and required BIOS
- Validated DIMM part, count, rank, speed, and population order
- Board dimensions, standoffs, I/O shield, and chassis support
- Heatsink, fan wall, air duct, and sustained thermal limit
- Slot lane width, bifurcation, and conflicts
- Backplane protocol, HBA, MCIO or breakout cable part numbers
- PSU connectors, auxiliary power, and total load
- BMC network, firmware, logs, and access policy
Full platform cost
Add CPU carrier and heatsink, ECC memory, chassis, rails, fans, power supply, risers, MCIO cables, HBA, network adapters, TPM, storage backplane, management license when present, spare parts, and support. The board price can be a minority of the final server.
Memory capacity and network interfaces often drive cost more than the motherboard. Build the full configuration and replacement plan before deciding that one board is cheaper.
Questions readers ask
Can a server motherboard fit a normal PC case?
Some ATX and micro-ATX boards can. Check exact dimensions, standoffs, socket cooling, power connectors, rear I/O, and board depth. SSI and proprietary designs often need a server chassis.
Does every server motherboard support ECC?
Most are designed around an ECC memory type, but the exact module class depends on the CPU and board. Verify the manual and tested-memory list.
Do I need IPMI?
Not for every local lab, but it is valuable when the server has no monitor, is difficult to reach, or must be recovered while the operating system is down.
Can an x16 card use an x8 slot?
Only when the physical slot is open or full length and the card, board, and firmware support operation at the available lane width. Performance may be limited by the narrower link.
