10Gb Network Card Buying Guide for Servers, Workstations, and Homelabs

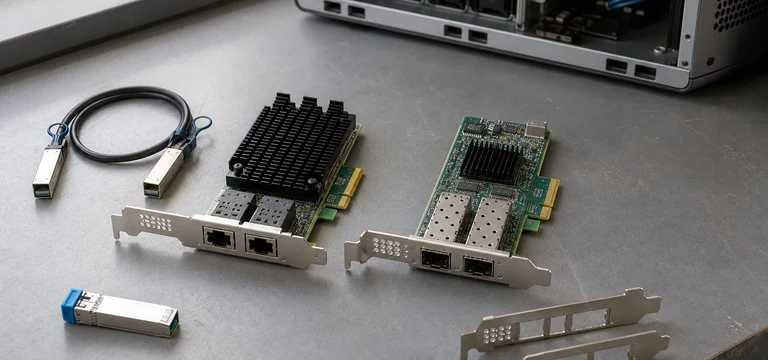

A 10gb network card adds a 10 Gigabit Ethernet interface to a desktop, workstation, server, or supported NAS. The useful choices split into two groups: 10GBASE-T cards with familiar RJ45 sockets and SFP+ cards for direct-attach copper or optical modules. Both can move the same Ethernet frames, but they differ in cable reach, heat, switch ports, module cost, and fallback speeds.

Quick comparison of the best 10Gb network adapters

How the cards were compared

The picks use current manufacturer specifications for port type, speed, PCIe interface, brackets, host support, offloads, and cabling. No card was benchmarked, thermally measured, or tested with third-party switches for this article. Driver support, firmware, motherboard lane sharing, and operating-system features can change the result, so the final check belongs to the exact host.

The list favors retail cards with clear documentation rather than unverified boards using a familiar controller name. Controller silicon does not prove that a card has the reference design, correct firmware, valid identity, or vendor support.

Best 5 10Gb network cards for servers, workstations, and homelabs

SFP+ versus 10GBASE-T for 10 Gigabit Ethernet

Choose 10GBASE-T RJ45 when

• The switch has native 10GBASE-T ports.
• Existing Category 6A cabling serves the route.
• 2.5G or 5G fallback helps a staged upgrade.
• A familiar patch-panel workflow matters more than module flexibility.

10GBASE-T can reach 100 meters on a compliant Category 6A channel. Some Category 6 channels can support shorter 10GbE links under the applicable installation conditions; Intel publishes 55 meters for the X550 family. Do not treat a link light on an unknown cable as category proof.

Choose SFP+ when

• The switch already has SFP+ uplinks.
• A short passive DAC can connect equipment in one rack or row.
• Multimode or single-mode fiber must cover a longer route.
• Lower cable bulk and a replaceable optical interface help the design.

Each SFP+ port needs an approved DAC, AOC, or transceiver. Match both host compatibility lists and the cable standard. A 10GBASE-SR module uses multimode fiber; a 10GBASE-LR module uses single-mode fiber. RJ45 SFP+ modules have their own power, heat, and reach limits.

PCI Express, drivers, thermals, and form factor

Physical PCIe slot size is not electrical lane count

A PCIe x16-length slot may be wired for x4, x2, or fewer lanes. Motherboards can also share lanes with a graphics slot, NVMe socket, or another riser. Read the board manual for lane width and generation in the planned configuration. A dual-port card needs enough host bandwidth for the traffic pattern, not just a slot that accepts its edge connector.

A single-port 10Gb network adapter can fit within fewer host lanes than a feature-heavy dual-port card, but offloads, simultaneous traffic, and platform overhead still matter. Check the card's required PCI Express generation and lane width against the slot's electrical wiring. For a dual-port server card, leave host-link margin for both ports rather than sizing the slot for one synthetic test direction.

Check the current driver and firmware path

Verify the exact card part, hardware revision, operating system, kernel or hypervisor release, and vendor driver. Confirm whether inbox drivers expose the needed offloads, virtual functions, multi-gig rates, PXE, and management tools. Update card firmware only with the vendor procedure and a recovery plan.

Windows Server buyers should verify the precise release and driver package, not a generic “Windows compatible” badge. Check checksum offload, large-send offload, VLAN, SR-IOV, virtual-function limits, and teaming or SMB Multichannel support only where the intended workload needs them. Linux and hypervisor deployments should likewise confirm the in-tree driver, firmware, VFIO or SR-IOV behavior, and vendor support policy.

Plan heat and bracket clearance

10GBASE-T controllers and copper PHYs can run hot. Keep the heat sink in the chassis airflow and avoid covering it with a cable bundle or adjacent card. Use the bracket height made for the chassis. A loose bracket or half-seated card can create intermittent PCIe or link faults.

Do not assume line rate equals file speed

Ten gigabits per second equals 1.25 gigabytes per second before Ethernet, IP, transport, file-sharing, and storage overhead. Real transfers depend on source and destination storage, CPU, memory, protocol, packet size, number of flows, and the switch path. A single hard drive usually cannot feed a sustained 10GbE file copy.

Receive Side Scaling lets supported network processing use several CPU cores. Microsoft documents SMB Multichannel as a way for SMB to create multiple connections over RSS-capable adapters and to use multiple suitable paths. RDMA and SMB Direct require an adapter, driver, operating system, and peer that explicitly support them; a 10GbE link alone does not add RDMA.

Jumbo frames are optional

A larger MTU can reduce packet-processing overhead for some storage traffic. It can also break traffic when one switch, VLAN, host, or tunnel uses a smaller limit. Start with the normal MTU, measure the workload, and change it only after testing the whole path.

A clean deployment sequence

1. Back up network settings and download the current driver before opening the host.
2. Shut down and follow the equipment maker's static and service precautions.
3. Seat the card in a slot with the required electrical lanes and secure the bracket.
4. Install the vendor driver and approved firmware, then reboot if required.
5. Connect a known cable, DAC, or optic pair supported by both endpoints.
6. Confirm negotiated rate, duplex, MTU, errors, drops, and temperature status where exposed.
7. Run a controlled network throughput test and a real application transfer.

Test one interface first. Add VLANs, bonding, teaming, SMB Multichannel, or virtual functions after the base link is stable. Record the card identity, driver, firmware, switch port, cable, and optic serials for later fault work.

How to choose the right 10Gb network adapter

• Choose an SFP+ network card for short DAC links or replaceable multimode and single-mode optical transceivers.
• Choose a 10GBASE-T network card when native RJ45 switch ports and compliant copper cabling are already part of the design.
• Match the PCI Express generation, wired lane count, full-height or low-profile bracket, and adjacent-slot clearance to the host.
• Confirm the exact Windows Server, Linux, NAS, or hypervisor driver before relying on offloads, VLANs, SR-IOV, or multi-gig fallback.
• Check the switch port's supported speed modes, approved SFP+ transceivers or DACs, and cable category or fiber specification.
• Plan airflow around the 10Gb network card and avoid assuming a passive heatsink receives adequate air in a desktop chassis.

A 10 Gigabit PCIe adapter is the right choice only when the rest of the system can use it. Storage, CPU, memory, protocol, switch capacity, and peer interfaces can each limit a transfer. For virtualization, a dual-port 10Gb Ethernet network adapter may separate storage and tenant traffic or support multiple paths, but the operating system and application must be configured to use those paths.

10GbE NIC, 10 Gigabit Ethernet card, and port terminology

A 10GbE NIC and a 10 Gigabit Ethernet card are two names for the same class of network interface. A listing for an SFP+ network card should identify whether optics or a DAC are included and which modules the host accepts. A listing for a 10GBASE-T network card should identify the native RJ45 speeds, cable requirements, and driver support.

The interface label does not settle platform fit. A 10GbE NIC still needs an adequate PCIe slot, a supported operating-system driver, cooling, a compatible switch port, and the right cable. Likewise, a 10 Gigabit Ethernet card can negotiate below 10Gb only when the controller, driver, switch, and copper PHY all support the fallback rate.

10Gb network card controller families in new and used listings

Search results for a 10Gb network card commonly mix complete supported adapters with unverified boards described only by controller family. Intel X520 and X540 cards, Broadcom-based adapters, NVIDIA or Mellanox ConnectX cards, and Marvell or Aquantia desktop cards can have very different PCIe interfaces, firmware, optics policies, offloads, brackets, and operating-system support even when every listing says “10 Gigabit.”

Treat names such as Intel X520-DA2, Intel X540-T2, Broadcom, or ConnectX as the start of identification, not proof of compatibility. Confirm the full board part number, OEM branding, hardware revision, port type, PCI Express lane requirement, and official driver. A rebadged server Ethernet card may need vendor firmware; a consumer PCIe network card may lack the Windows Server or hypervisor features shown for the underlying network interface controller.

For desktop computers, also check wake behavior, sleep recovery, case airflow, and whether the low-profile bracket is actually included. For servers, prioritize lifecycle support, virtual functions, error reporting, firmware tooling, and a replacement path. This makes the network connection easier to operate than selecting a card from advertised transfer speed alone.

Cost and deployment value

An RJ45 card can reuse a suitable copper plant but may require a 10GBASE-T switch that costs more and draws more power than an SFP+ model. An SFP+ card needs a DAC or two optics plus fiber. Compare both endpoint ports, cables, modules, and spare parts rather than card price alone.

Dual ports add value when the application can use separate networks, failover, storage isolation, or SMB Multichannel. They do not double one ordinary TCP flow by themselves. A one-port card can be the better purchase for a workstation with one switch path.

Used server adapters can lower cost, but support status, hardware authenticity, firmware history, bracket, and thermal condition may be unknown. A documented retail channel is worth more when the system carries production traffic.

Used-enterprise, warranty, and seller checks

For a used 10Gb network card, verify the controller identity, board revision, OEM branding, firmware update path, full-height or low-profile bracket, port condition, and return window before purchase. Vendor-locked firmware can limit updates or transceiver choices. Photos should match the claimed part number, but appearance alone cannot establish authenticity or remaining service life.

Customer reviews are most useful for repeated, specific reports about driver installation, sleep or reset behavior, thermals, bracket fit, and seller fulfillment. They do not replace the official compatibility matrix. Prefer a seller that states the exact model and revision, tests both ports, offers returns, and explains whether the original manufacturer warranty transfers.

Questions readers ask

Will a 10Gb card work in a PCIe x16 slot?

Often, when the slot is electrically wired for at least the card's required lanes and the firmware supports it. Check the motherboard manual and lane-sharing table.

Can Cat5e carry 10GbE?

Some multi-gig cards use Cat5e for 2.5G or 5G. Do not plan a 10GBASE-T channel from the Cat5e label alone. Use the card and cabling standard's stated reach and test the installed path.

Is SFP+ faster than RJ45?

Both can carry 10GbE. The differences are physical media, reach, power, heat, latency characteristics, port cost, and fallback behavior.

Does a dual-port card provide 20Gbps?

It provides two 10GbE interfaces. Applications need a supported multi-path, link aggregation, or multi-session design to use both, and the PCIe host link must carry the traffic.

Do I need jumbo frames for 10GbE?

No. Standard Ethernet MTU works at 10GbE. Change MTU only when a measured workload benefits and the entire path supports the same size.
