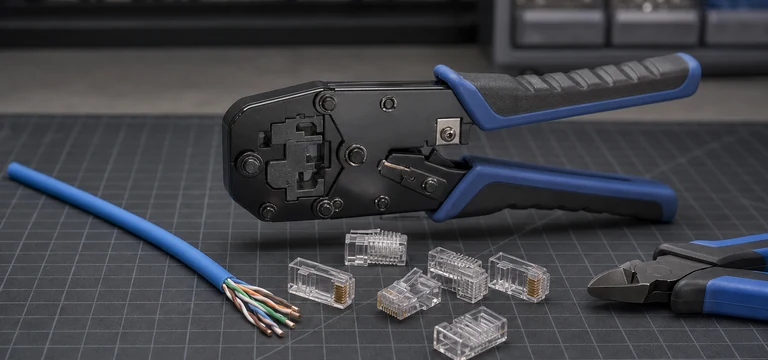

An RJ45 crimp tool presses modular-plug contacts into Ethernet conductors and closes the plug's strain-relief feature around the cable jacket. A pass-through model also trims eight wires at the nose. Small differences in plug body, contact depth, shield tab, and strain latch mean that an eight-position die is not automatically compatible with every eight-position plug.
Best RJ45 crimp tool quick comparison
| Tool | Designed use | Main limit |
|---|---|---|
| Klein VDV226-110 | Klein RJ45 Pass-Thru plugs; standard RJ11/RJ12 | Not for standard closed-end RJ45 plugs |
| Platinum EZ-RJPRO HD 100054C | EZ-RJ45 and listed standard modular plugs | Maker warns against mixed systems |
| trueCABLE trueCRIMP V3 | Standard and pass-through RJ45; shield tabs | Excludes AMP and ezEX-RJ45 |
The comparison is based on manufacturer specifications, supported connector lists, replaceable parts, and published instructions. It does not include measured crimp force, conductor pull strength, blade life, hand fatigue, or field-failure rate.
RJ45 crimp tool selection criteria
The best RJ45 crimp tool starts with the approved plug family. Then check closed-end or pass thru operation, solid or stranded conductor support, cable category, conductor gauge, insulation and jacket diameter, shield hardware, and strain-latch design. Only after those items match should ratchet action, die support, replacement blades, cutters, strippers, price, and storage affect the choice.
The three featured RJ45 crimp tools were selected because their manufacturers publish usable connector guidance and they represent distinct systems. The recommendations are based on official specifications and instructions, not subjective durability or ergonomics testing. A cable tester remains a separate requirement even when a crimping tool includes a wiring guide.
An Ethernet crimping tool advertised as universal still needs an exact compatibility check. An RJ45 crimper may fit the plug cavity yet miss the strain latch or contact depth. A pass through RJ45 crimper adds another critical dimension because its cutter must trim all eight conductors flush without damaging the connector nose.
Tool compatibility comes before features
Three common crimper types
A standard ratchet crimper works with closed-end modular plugs: conductors are trimmed before insertion, then the die seats contacts and strain relief. A pass-through crimper adds a face blade for plugs whose conductors extend through the nose. A universal or multi-die tool may cover several named connector families, but “universal” never removes the need to check the tool and plug part numbers.
Tools can also include RJ11 and RJ12 cavities for voice plugs, replaceable dies, or separate shield-tab fixtures. Those features help only when the connector system calls for them. A cavity marked 8P8C or RJ45 describes the broad interface, not every plug-body dimension.
Closed-end plugs
A closed-end plug holds the trimmed conductors inside its nose. The tool presses the contacts down and closes strain relief, but it does not need a flush-cut blade at the face. The installer must trim all conductors square and insert them fully before crimping.
Some pass-through tools can crimp standard plugs; others cannot. Klein explicitly lists its VDV226-110 for Klein Pass-Thru RJ45 plugs and says it is not for standard non-pass-through RJ45 connectors. A similar-looking cavity does not overrule that instruction.
Pass-through plugs
Eight conductors extend through the plug nose, making the color order and seating depth easy to inspect. During the ratchet cycle, the tool must press the contacts and cut every wire flush. A dull, misplaced, or incompatible blade can leave copper proud of the face, fold a stub against the plug, or cut into the body incorrectly.
The plug and crimper form a system. Klein, Platinum Tools, and trueCABLE each publish supported plug families. Replacement blade availability matters for repeated work because a worn flush cutter can turn good cable preparation into rejected ends.
Pass thru connectors can make wire positioning more visible, but they do not remove the need to preserve pair twists, seat the jacket under strain relief, and inspect the cut face. Closed-end connectors require the installer to trim the wires to the correct common length before insertion. Compare plug-body depth and load-bar instructions with the cable before deciding which system is easier for the job.
Shielded connectors and drain wires
A shielded plug may need a separate cavity or tool to close a rear ground collar or external tab. That step is different from crimping the eight contacts. Read how the plug's foil, drain wire, strain relief, and shield tab are prepared. Do not squeeze a shield with ordinary pliers and assume the bond is correct.
The shield shell must fit the die without being crushed, and the cable's drain wire or braid must follow the connector maker's preparation. Cat6A plugs can have larger conductors, load bars, and jacket openings than Cat6 plugs. Verify the supported tolerance rather than treating every 8P8C modular connector as interchangeable.
Some shielded connectors close an external ground tab with a dedicated cavity after the contact crimp. Others use a collar or clamshell. The RJ45 crimping tool documentation must cover that operation, and the finished cable still needs the shield and wire-map checks required by the installation.
Cat6 and Cat6A cable fit
Category labels do not define one physical size. Cable can vary in conductor gauge, insulation diameter, jacket diameter, spline, shield, and solid or stranded construction. The plug must accept those dimensions before the tool can do useful work.
Large Cat6A field plugs may use a termination fixture instead of a modular crimper. Permanent solid cable often belongs on a keystone jack or patch panel. Use a male plug on fixed cable only when the network design, connector, cable, and test model support that topology.
Match the tool to workload and support
An occasional home-network repair does not need the same tool inventory as daily commercial termination. Low-volume buyers still need an approved die, clean cutter, and cable tester. Frequent installers benefit from readily available replacement blades, a documented calibration or inspection process where offered, spare tools, standardized connectors, and a support channel that can answer compatibility questions.
Price the full system: crimper, supported plugs, load bars or boots, replacement blades, cable preparation tools, and tester. A cheaper frame that wastes connectors or has no replacement cutter can cost more over repeated work. This guide does not claim measured handle force, fatigue, crimp consistency, or service life.
Features that matter
Full-cycle ratchet
A ratchet holds the die through a complete cycle and helps prevent a partial squeeze. Check that the release works and that the handles reopen cleanly. A ratchet cannot correct a mismatched plug or wire that stopped short of the contacts.
Stable die support
The plug should enter squarely and stay supported while force is applied. A loose cavity can tilt the body. Inspect whether all eight contact blades sit at a consistent height after crimping and whether the latch remains intact.
Replaceable cutters
Pass-through face blades are wear parts. Klein lists VDV999-076 as the replacement blade for the VDV226-110. Platinum Tools and trueCABLE also list replacement components for their selected tools. Price and availability belong in the buying decision.
Jacket stripper and cable cutter
Built-in tools reduce what must be carried, but the stripper still needs to suit the cable diameter. Rotate or close it only as the instructions state. A deep score can nick conductor insulation and create a fault after the cable bends.
Wiring guide
An on-tool T568A/B color card is convenient, yet plug orientation still matters. Compare the conductor order with the plug maker's view. Turning the connector over mirrors the apparent pin order.
Three current RJ45 crimp tool picks
Klein Pass-Thru system pick
Klein Tools VDV226-110
Price: check the current seller
Klein's ratcheting tool cuts, strips, crimps, and trims its Pass-Thru RJ45 plugs. The data sheet lists 28 to 22 AWG flat or round solid and stranded telephone or data cable, Cat3 through Cat6A cable types, an on-tool wiring guide, and a replaceable flush blade.
Choose it when the bill of materials uses Klein Pass-Thru plugs. Do not buy it for closed-end RJ45 plugs: the current product page says the RJ45 cavity is not for standard non-pass-through connectors.
Strengths
- Full-cycle ratchet
- Flush cut and wiring guide
- Replacement blade available
Limits
- RJ45 use tied to Klein Pass-Thru plugs
- Not electrically insulated
- Tool still needs separate cable verification
Heavy EZ-RJ45 system pick
Platinum Tools EZ-RJPRO HD 100054C
Price: check the current authorized seller
Platinum Tools describes the EZ-RJPRO HD as a ratcheting high-force tool for its EZ-RJ45 crimp-and-trim connectors and larger supported cable. The steel die surrounds the plug, a face blade trims extended conductors, and replacement blade sets are listed.
The product page also carries a clear system warning: EZ-RJ45 connectors and tools are designed to work together, and unintended brand mixing can cause bad connections, breakage, hazards, and loss of warranty coverage. This is a good pick only when the connector family is chosen with it.
Strengths
- Built for larger supported cable
- Replaceable blade sets
- Supports listed EZ-RJ45 plug family
Limits
- Heavy system-specific tool
- Not compatible with AMP
- Brand mixing is discouraged by the maker
Broad standard and pass-through range
trueCABLE trueCRIMP V3
Posted price: $66.99
The trueCRIMP V3 is listed for standard closed-end and pass-through RJ45 plugs, including shielded styles and external ground tabs, except AMP and ezEX-RJ45. It combines cable cutting, jacket scoring, contact crimping, pass-through trimming, and an adjustable strain-latch presser. The stated scoring range is 6 to 8 mm jacket diameter.
The broad claim still centers on plugs tested by trueCABLE. Buyers using another brand should verify dimensions and obtain written compatibility. The flush cutter and cable cutter are replaceable; the scoring blade is not.
Strengths
- Closed-end and pass-through support
- Shield ground-tab cavity
- Replaceable main cutters
Limits
- Two named connector exclusions
- Scoring blade is not replaceable
- Third-party plug fit needs confirmation
A repeatable RJ45 crimping workflow
- Verify the materials. Match plug, crimper, cable category, solid or stranded conductors, gauge, insulation, jacket, shielding, and boot.
- Disconnect both ends. Never cut or crimp a cable connected to PoE, telephone, or other energized equipment.
- Cut square. Slide on the boot or shield parts before stripping if their design requires it.
- Strip a short jacket length. Inspect every conductor and cut back any nicked section.
- Prepare the pairs. Follow the plug's spline, load-bar, foil, drain-wire, and T568A/B instructions. Keep untwist short.
- Insert fully. Confirm all eight wires reach the contact zone and the jacket reaches the strain-relief area.
- Check color order. View the plug in the orientation shown by the manufacturer.
- Cycle the ratchet once. Seat the plug squarely and close the handles through the full release point.
- Finish the shield. Close any separate collar or tab with the specified cavity or tool.
- Inspect and test. Reject proud copper, uneven contacts, a cracked latch, loose jacket, wrong order, or split pair.
Do not crimp the same plug repeatedly to chase an uneven result. Repeated force can deform the body without fixing conductor position. Cut it off, inspect the tool and cable preparation, and install a new connector.
Faults the tool can create or reveal
Open pin
A conductor may not reach the front, the contact may not seat, or the wrong die may stop early. Compare all contact heights and replace the plug.
Short at a pass-through face
A dull blade can leave a copper whisker between paths. Inspect under strong light and replace both the blade and plug when the cut is poor.
Loose cable jacket
The strain tab may land on individual pairs rather than the jacket, or the plug may not fit the cable diameter. Movement then reaches the contacts. Choose the correct plug and preparation length.
Split pair
All pins can show continuity while signal pairs use conductors from different twists. Follow the full T568 layout and use a tester with split-pair detection.
Cracked or jammed plug
The connector may be crooked in the die, too large for the cavity, or from an unsupported family. Stop using that combination and check the compatibility list.
Testing after crimping
At minimum, test continuity, pin order, opens, shorts, reversals, and split pairs. Flex the boot lightly during the check when the procedure permits it. Label the cable only after it passes.
A wire map does not prove Cat6 or Cat6A performance. Links that must meet a cabling category need a qualification or certification method suited to the installed topology. Patch cords, permanent links, and modular-plug terminated links use different adapters and limits.
For PoE, a correct map is only the first check. Contact resistance, cable length, conductor material, bundle heat, and device load affect delivery. A powered device that starts and then restarts may need a loaded PoE and cable investigation.
Interpreting a successful cable-tester result
A basic wire-map pass means all eight pins reach the expected remote pins without an open, short, reversal, or crossed conductor. Confirm that the tester also detects split pairs; simple sequential lights may show continuity while the wrong conductors form a signal pair. Retest after flexing the boot gently if the procedure allows it, and retest every cable after retermination.
Physical validation and network security are separate layers. In a controlled deployment, document the cable identifier, tester result, technician, and date before the switch port is provisioned. Coordinate sensitive ports with the network owner so an unverified cable or device does not bypass the intended VLAN, authentication, or access-control process.
How to choose the right RJ45 crimping tool
- Choose the connector and cable system first; obtain written compatibility when brands are mixed.
- Use a pass through RJ45 crimper for frequent pass thru work only when its face cutter matches the plugs.
- Confirm Cat6 or Cat6A conductor, jacket, load-bar, shield, and strain-relief dimensions.
- Prefer a full-cycle ratchet and supported die over an unsupported claim of universal fit.
- Price replacement blades and obtain a suitable cable tester with the tool.
The Klein VDV226-110 is the focused choice for Klein Pass-Thru connectors. The Platinum Tools 100054C suits the listed EZ-RJ45 professional system and larger supported cable. The trueCABLE trueCRIMP V3 covers a broader published range of standard and pass-through connector styles, with named exclusions that still need attention.
For occasional home work, do not let a low tool price replace system fit and testing. For repeated professional work, standardizing one plug family, one supported Ethernet crimping tool, spare blades, and a documented tester workflow makes training and fault isolation more repeatable.
Cost, maintenance, and research limits
A basic generic ratcheting tool can be inexpensive, but the approved connector system matters more than the lowest purchase price. Professional pass-through tools commonly cost tens of dollars, with trueCRIMP V3 posted at $66.99 during this review. Heavy system tools, shield fixtures, replacement blades, and test equipment add cost.
Keep the die clean and dry, remove wire scraps, check screws, oil only where the maker permits it, and store the handles locked without crushing the blade. Replace a face cutter when it tears or folds conductors. Keep a small known-good plug and cable sample for visual comparison, not as a substitute for testing.
This article compares published product fit and features. It does not claim hands-on testing or rank measured durability. Tool revisions and connector families change, so confirm the exact model and plug part number before a bulk purchase.
Questions readers ask
Can one RJ45 crimper work with every RJ45 plug?
No. Contact depth, plug body, pass-through cut, strain tab, and shield hardware vary. Follow the tool and plug compatibility lists.
What is the difference between a pass-through and standard crimp tool?
A pass-through tool adds a face blade that trims conductors extending through a compatible plug. A standard tool crimps closed-end plugs whose wires were cut to length before insertion. Both still require correct cable fit, short untwist, inspection, and testing.
Can I crimp Cat6 cable with a Cat5e tool?
The cable label alone does not decide. The crimper must support the exact Cat6 plug, and that plug must fit the cable's physical dimensions and conductor construction.
Should solid cable get male RJ45 plugs?
Permanent solid cable is commonly terminated on jacks and patch panels. A rated male plug can be used in a documented direct-attach or MPTL design when the cable, plug, tool, and test plan support it.
Do Cat6A connectors need a different crimp tool?
They may. Cat6A plug bodies, load bars, conductor sizes, shield hardware, and die geometry can differ from Cat5e or Cat6 parts. Use only a tool the plug maker lists for the exact connector.
What is the best RJ45 crimp tool for beginners?
A beginner benefits from a full-cycle ratchet, clear manufacturer compatibility, an available replacement blade when the design uses one, and matching plugs. Pass-through can make wire order visible, but it still needs a compatible cutter and a cable tester.
How much should an RJ45 crimp tool cost?
Purchase price varies by connector system and included functions. Compare the complete supported system and replacement-parts cost rather than using one price band as proof of quality. A suitable tester may cost more than the crimper and remains necessary.
