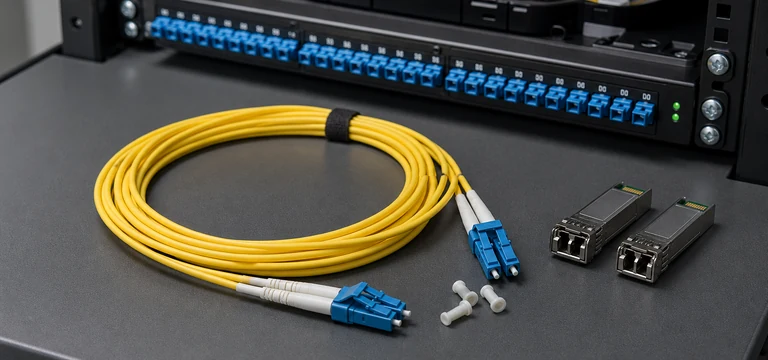

A single mode fiber optic cable carries light through a much smaller optical path than multimode fiber. It is the normal choice for long links, campus backbones, provider handoffs, and new cabling that may need faster optics later. The cable alone does not set speed or distance. Those limits come from the complete channel: transceivers, wavelength, fiber type, connectors, splices, patch panels, loss, and the Ethernet or storage standard in use.
Executive summary for fiber optic cable decisions
Single-mode fiber earns its place when copper cannot cover the distance, when electrical isolation between buildings matters, or when the route should support several generations of network speed. It is also common inside data centers for 10GBASE-LR and other longer-reach optical standards. A short link can use single-mode fiber too; distance is not a minimum requirement unless the optic data sheet states one.
The tradeoff is discipline. Single-mode optics, connector cleanliness, received-power limits, and cable handling all matter. A link can be physically connected yet stay down because one end uses the wrong wavelength, one optic is rejected by its switch, or an APC patch cord was mixed with a UPC adapter.
| Route | Usual starting point | Check before ordering |
|---|---|---|
| Inside one rack or row | DAC, AOC, or multimode may cost less | Port type, length, airflow, cable bulk |
| Between rooms or buildings | OS2 single-mode fiber | Path rating, grounding boundaries, loss budget |
| Provider or PON handoff | Provider-specified single mode | Connector polish, wavelength, demarcation rules |
| Harsh outdoor route | Outdoor or indoor/outdoor OS2 cable | Moisture, conduit fill, pulling load, temperature |
What this recommendation covers
The recommendation is based on current fiber standards and published cable and transceiver specifications. No cable was pulled, fusion-spliced, or measured for this article. A project design still needs the cable manufacturer's bend, tension, temperature, and fire-rating limits, plus the active-equipment compatibility lists at both ends.
Do not choose a cable from its jacket color alone. Yellow is commonly used for single mode, but color is an identification aid rather than a performance certificate. Read the printed cable legend and product data sheet.
Fiber optics in plain language
An optical fiber guides light through a glass core surrounded by cladding with a different refractive index. Common single-mode fiber is described as 9/125 µm: the light-carrying core is nominally about 9 micrometers across and the cladding is 125 micrometers. That small core supports one propagation mode over the wavelengths used by common Ethernet optics, reducing modal dispersion compared with multimode fiber.
Multimode cable is organized into OM families such as OM1 through OM5 and is normally paired with short-reach optics. Single-mode cable uses OS categories and commonly carries 1310 nm or 1550 nm signals. Neither family is automatically faster. The Ethernet optic, channel specification, and total loss determine whether a link works at its intended rate and distance.
In a network, the transmitter converts electrical data into light signals, the optical fiber guides those signals, and the receiver converts them back. A pair of fiber optic cables may carry transmit and receive separately, while a BiDi design uses different wavelengths over one strand. This is why cable type alone does not set bandwidth: the transceivers and Ethernet standard define the data rate, while attenuation and dispersion help define usable distance.
Different types of fiber optic cables: single mode and multimode fiber
OS2 is the normal choice for new work
OS1 and OS2 are cabled-fiber categories used in structured cabling. OS2 is the lower-loss category normally selected for new backbone, campus, and outside-plant links. Existing OS1 cable can still serve supported applications, but adding new OS1 just to match an old label rarely creates an advantage. Confirm the actual link length and application limit instead of assuming every installed single-mode strand is equal.
ITU-T G.652 describes widely used single-mode fiber with a zero-dispersion wavelength near 1310 nm and operation in both the 1310 nm and 1550 nm regions. G.652.D is common in OS2 cable. Bend-improved G.657.A1 fiber is designed to remain compatible with G.652 fiber while reducing loss from tighter bends. That does not cancel the cable's stated minimum bend radius.
Fiber count and topology
A normal duplex Ethernet optic uses one strand to transmit and one to receive. A duplex link therefore consumes two strands. BiDi optics send and receive on different wavelengths over one strand, but the two modules must be a complementary pair. Parallel optics can use MPO connectors and several strands at once.
Count live paths, diverse paths, monitoring links, and repair spares. A 12-strand backbone often costs little more to install than a two-strand cable because labor, conduit access, permits, and termination work dominate the project. Excess strands still need labeled panel space and acceptance testing, so “more” is not free.
Fiber optic patch cable and jacket ratings
Match the cable construction to the whole route. Plenum, riser, general-purpose, low-smoke, armored, direct-burial, and indoor/outdoor cables solve different fire, moisture, crush, and transition problems. An outdoor cable may need to end or transition shortly after entering a building under local code. A qualified cabling designer or authority having jurisdiction should settle code questions.
For U.S. premises work, OFNP is a common optical-fiber plenum marking and OFNR is a common riser marking; the permitted choice depends on the pathway and local code. LSZH describes smoke and halogen behavior and is not a substitute for verifying the required building rating. A factory-terminated fiber optic patch cable also needs the correct simplex or duplex layout, connector polish, length, and bend specification.
Armor protects against some crush and rodent risks but adds diameter, weight, bonding questions, and pulling force. A dielectric cable avoids conductive armor. Neither construction removes the need for pathway planning and separation from hazards.
LC, SC, UPC, and APC
LC is common on modern SFP and SFP+ optics because it fits dense equipment. SC remains common at provider panels, passive optical networks, and older building systems. An adapter cable can join different connector families when the fiber and polish match.
UPC connectors have a flat physical-contact polish and are often blue. APC connectors use an angled polish and are often green. The colors help, but the product marking is the authority. Directly mating APC and UPC faces creates an air gap, high reflection, and poor loss. Use the polish required by the transceiver, splitter, patch panel, or provider handoff.
Transceiver compatibility and optical loss budget
Start at the host ports. Record the switch, router, server card, or media converter model and software version. Then choose a supported optic standard. A 10GBASE-LR module is not made compatible with a 1000BASE-LX module by sharing a 1310 nm label. Speed, signaling, and host-port support must agree.
- Host support: confirm the module part number in each device's compatibility list.
- Ethernet standard: match both ends, such as 1000BASE-LX or 10GBASE-LR.
- Fiber and wavelength: confirm OS2 single mode and the stated transmit wavelength.
- Connector: match LC, SC, MPO, UPC, or APC as specified.
- Reach and power: keep channel loss between the receiver sensitivity and overload limits.
Build an optical loss budget
The available power budget is the minimum transmitter output minus the receiver sensitivity, both in dBm. The planned channel loss is the sum of cable attenuation, connector loss, splice loss, splitter loss when present, and an engineering margin. The receiver also has a maximum input level. A very short link with a high-power long-reach optic can overload a receiver even though distance is far under the advertised maximum.
Use worst-case values from the optic and cable data sheets. Corning's current SMF-28 Ultra sheet, for example, publishes maximum attenuation values by wavelength rather than one universal number. A project should use the purchased cable's value, not a generic internet calculator.
Duplex and BiDi links
On a duplex link, transmit at one end must reach receive at the other. If the link stays dark after cleaning and specification checks, verify polarity at the patch panels. On a BiDi link, the paired optics use opposite transmit and receive wavelengths. Two identical “upstream” modules will not form a link.
Deploying, cleaning, and testing single-mode fiber
Protect the route
Follow the cable's published pulling tension, bend radius during installation, bend radius after installation, crush load, and temperature range. Pull from the strength member or approved pulling eye, not from a connector boot. Use innerduct, trays, bushings, and service loops that preserve the minimum bend radius without leaving coils where they can be crushed.
Preterminated assemblies reduce field termination work but require a pathway large enough for the pulling grip and connector bundle. Field-spliced pigtails fit tighter conduits and allow exact lengths, but they need trained staff, a clean workspace, splice protection, and test records.
Inspect and clean every connection
Dust and oils can block the tiny optical interface or scratch another ferrule. Keep dust caps on unused ports, but do not assume a cap means the end face is clean. Inspect with a suitable fiber microscope, clean with the approved tool, and inspect again before mating. Never look into a live fiber or transceiver with the eye.
Use two kinds of acceptance evidence
An optical loss test set measures total insertion loss across the link at the required wavelengths. An OTDR can locate events such as connectors, splices, bends, and breaks along the route. The two tests answer different questions. Long or contract-critical links often call for both, with launch and receive fibers sized for the test method.
Save results by cable ID and strand. Record direction, wavelength, reference method, test limit, equipment calibration status, and the measured value. A green link light proves that the active devices negotiated; it does not replace a cable acceptance record.
Use single mode—or choose another medium
Use OS2 single-mode fiber when a route crosses buildings, exceeds practical copper distance, needs electrical isolation, or should support later optical standards. A carrier, PON, or long-reach Ethernet handoff may also specify it.
Use an approved DAC or copper link for a short route when it costs less and fits the equipment. Ordinary fiber cannot deliver PoE, and any optical design still needs staff who can inspect, clean, test, and document the connectors.
Fiber optic cable cost and purchasing checklist
The raw cable is only one line in the budget. Include pull boxes, conduit or tray, innerduct, fire stopping, patch panels, cassettes, pigtails, splice sleeves, enclosures, patch cords, optics, cleaning supplies, labels, test labor, and documentation. Outside routes may add trenching, locates, permits, restoration, lightning-risk boundaries, and building-entry work.
Open SFP ports can reduce future equipment changes because the optic sets the reach and wavelength. They can also shift compatibility risk to the buyer. Vendor-coded optics cost more than generic modules in many systems, while third-party modules may have different support terms. Price the approved optic pair before settling on the switch or converter.
A spare strand is cheap during the first pull and costly after ceilings close. A spare optic is the reverse: it can be stocked later, but its firmware and host compatibility should be documented. Separate construction spares from replaceable electronics in the budget.
Single-mode fiber purchasing checklist
- Record the exact OS2 fiber, strand count, construction, jacket rating, and route length on the purchase order.
- Specify simplex or duplex, LC or SC, and UPC or APC instead of relying on photos or jacket color.
- Request the manufacturer's attenuation, bend, pull, temperature, and compliance documents for the exact part number.
- For preterminated assemblies, require factory insertion-loss results and agree on acceptance limits before shipment.
- Document optic part numbers, wavelength, reach class, host compatibility, warranty, and return terms with the cable record.
This checklist makes a single mode fiber optic cable order auditable without pretending that a certificate replaces site acceptance testing. Inspect delivered labels and connector ends, then test every installed strand at the wavelengths required by the project.
Single mode vs multimode fiber terms
OS1 and OS2 are cabled single-mode optical fiber categories; use the purchased cable's construction and attenuation specifications rather than treating the category as a complete design. OM1 through OM5 are multimode fiber categories used with compatible short-reach optics. A single mode fiber cable and a multimode fiber cable can share an LC connector shape while requiring different transceivers.
Simplex uses one fiber, while duplex pairs two fibers, typically one transmit and one receive strand. UPC and APC describe different connector end-face polishes and must not be directly mated. Insertion loss is the optical power lost through the cable channel; return loss describes reflected power. An OTDR locates events along an optic cable, while an optical loss test set measures the total channel loss.
These terms describe parts of a fiber optic cable system, not interchangeable products. A correct order still names the fiber category, jacket and route rating, connector family, polish, strand layout, length, optic standard, wavelength, and acceptance-test method.
For a single mode vs multimode fiber decision, compare the installed distance, required Ethernet standard, optic price and support, existing patch panels, and the cost of future changes. OS2 fiber is a strong default for a new backbone, while a supported OM3 or OM4 channel may remain the economical answer for an existing short data-center link.
Questions readers ask
Can single-mode fiber run 1, 10, 25, or 100 Gigabit Ethernet?
Yes, when the cable channel and matched optics support the chosen Ethernet standard. The same OS2 plant may serve several speeds over time, but each change still needs the correct optics, loss budget, and host support.
Is OS2 always yellow?
No. Yellow is common for single-mode patch cords and premises cable, while outside and armored jackets use other colors. Read the cable print and data sheet.
Can OS1 and OS2 be connected?
They can form a physical link when the connector and fiber interfaces fit, but the complete channel must meet the application's loss and distance limits. Treat the older segment as a measured part of the budget.
Can an LC/APC cord plug into an LC/UPC optic?
The connector body may fit, but the polished faces do not. Do not mate APC to UPC. Use a cord and adapter path with the polish specified by the equipment.
Does a longer-reach optic always work better?
No. It can cost more, draw more power, and exceed the receiver's input limit on a short low-loss channel. Choose the reach class that covers the measured route with margin.
Sources
- ITU-T G.652 single-mode fiber recommendation, checked July 16, 2026.
- Corning SMF-28 Ultra optical fiber product information, checked July 16, 2026.
- Cisco 10GBASE SFP+ module specifications, checked July 16, 2026.
